The Gene Regulation Landscape

I have always wanted to understand how a cell works.

Most of the time, even when textbooks go into molecular detail, the story is still organized around dogmas. One chapter adds chromatin. Another adds transcription factors. Later, RNA processing appears. Then translation, protein degradation, signaling, condensates, non-coding RNAs, and so on. Each new mechanism is real, but they often arrive as separate layers of complexity, not as one formal picture of what we collectively know.

That is what I tried to build here: a summary of our current formal knowledge of gene regulation, placed into one landscape.

While doing it, I noticed something that surprised me. Biology has many measurements and many local names, but sometimes no clean conceptual object for things that are probably views of the same underlying cellular structure. For example, super-enhancers in ChIP-seq and transcriptional condensates in microscopy are not strictly identical, but they are clearly not unrelated either. In other places, molecular biology has long descriptive sentences for mechanisms, but no short handle that makes the mechanism easy to reason about.

So I gave each main mechanism a short code name. The names are not meant to replace the biology; they are handles that point back to precise glossary entries. I hope the map is useful, and maybe sparks discussions.

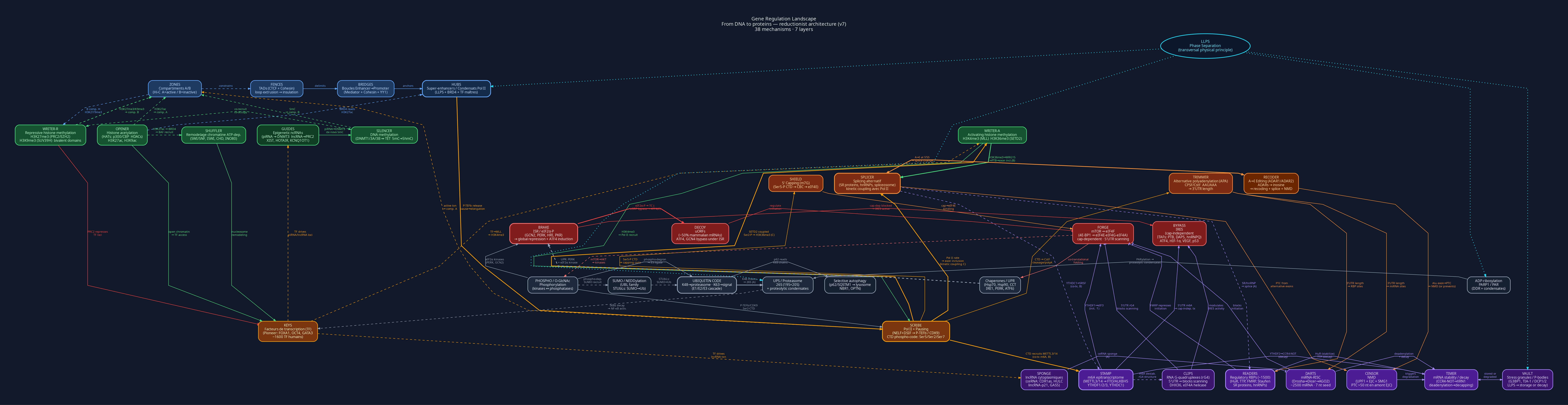

The map is very large, so the embedded version below is mostly a preview. You can open the full-resolution zoomable map here. The companion technical notes contain the 1-to-1 glossary for every box name, the full mechanism catalogue, link rationale, and legend details. The Graphviz DOT source is also available. A node-by-node literature audit now reviews the biological support, caveats, and proposed graph revisions for all 37 mechanism boxes. Several arrows were added or softened after that audit: for example, the cap now links to mRNA stability, growth and translation state now regulate decoding tempo, codon optimality and translation surveillance now link to mRNA decay, chaperone triage links back to ubiquitin routing, signaling links to CRL licensing, and nuclear lncRNA guides link to repressive histone writers. Other arrows are deliberately dashed because the evidence is contextual rather than universal.

In the figure, each box title is a code name that maps 1-to-1 to the catalogue entry in the technical notes. Solid arrows are the main mechanistic relations; dashed arrows indicate contextual, feedback, or association-style links; tee-headed arrows indicate repression; bold arrows mark especially important coupling edges. Border styles mark meta-principles such as LLPS and DECAY: these are recurring physical or regulatory motifs that appear across several mechanisms, not separate boxes in the pathway.

The map is also intentionally reductionist. I did not try to draw every important named event as its own box. Some biological phenomena are real and important, but they are better understood as outputs of several lower-level mechanisms already shown in the graph. For example, promoter/TSS choice depends on transcription-factor grammar, chromatin accessibility, enhancer contacts, and Pol II initiation/pausing. Transcription termination depends on Pol II state, cleavage/polyadenylation, chromatin context, and RNA decay machinery. Whether an RNA leaves the nucleus depends on capping, splicing, 3’ processing, RNA-binding proteins, RNA marks, and quality control. In those cases, the goal is not to add a new named event whenever biology has a label for one. The goal is to ask whether the underlying decision mechanisms and their links are already represented.

This is also why some familiar topics, such as R-loops, DNA torsional stress, transcription-replication conflicts, nuclear bodies, broad epitranscriptomic marks beyond m6A, repeats/transposons, motif grammar, and Pol I/Pol III rRNA/tRNA biology are handled as caveats, extensions, or submechanisms in the technical notes rather than as new boxes in the main landscape. That choice is not a claim that they are unimportant. It is a claim about map resolution: this figure prioritizes reusable regulatory mechanisms over named composite events.

Post-translational control is shown with representative feedback routes rather than every substrate-specific event. SWITCH, ROUTER, and DESTROY can touch many upstream programs; the map draws the main recurring routes to TF activity, Pol II, stress translation, proteostasis, and mTOR/NF-κB-style feedback. LICENSE is intentionally narrower: NEDDylation mainly activates cullin-RING E3 ligases, so its main graph role is to feed ROUTER.

Box Glossary

Each box in the image has exactly one entry here. Box titles are the short code names; italic text inside the image marks genes or proteins when the label needs examples.

Code	Layer	Meaning
ZONES	3D genome	A/B chromatin compartments.
FENCES	3D genome	TAD boundaries and insulation by CTCF/cohesin.
BRIDGES	3D genome	Enhancer-promoter loops.
HUBS	3D genome	Super-enhancers / enhancer hubs, with Pol II/coactivator condensates treated as a related but not identical physical model.
SILENCER	Epigenetics	DNA methylation and repressive chromatin memory.
OPENER	Epigenetics	Histone acetylation that opens chromatin.
WRITER-A	Epigenetics	Activating histone methylation marks.
WRITER-R	Epigenetics	Repressive histone methylation marks.
SHUFFLER	Epigenetics	ATP-dependent nucleosome remodeling.
GUIDES	Epigenetics	ncRNAs that recruit chromatin regulators.
KEYS	Transcription	Transcription factors, including pioneer factors.
SCRIBE	Transcription	Pol II pausing, release, and CTD phosphorylation.
SHIELD	Co-transcriptional	5’ capping and cap-dependent protection/export.
SPLICER	Co-transcriptional	Alternative splicing coupled to Pol II kinetics.
TRIMMER	Co-transcriptional	Alternative polyadenylation and 3’UTR choice.
RECODER	Co-transcriptional	A-to-I RNA editing by ADARs.
STAMP	Post-transcriptional	m6A RNA marking and reader-dependent fate choices.
READERS	Post-transcriptional	RNA-binding proteins that tune RNA processing, stability, localization, and translation.
DARTS	Post-transcriptional	miRNA-RISC targeting.
SPONGE	Post-transcriptional	Cytoplasmic lncRNA/circRNA competition with miRNAs, kept as a strongly stoichiometry- and localization-dependent mechanism.
CENSOR	Post-transcriptional	Nonsense-mediated mRNA decay.
TIMER	Post-transcriptional	mRNA half-life, deadenylation, decapping, and decay.
CLIPS	Post-transcriptional	RNA G-quadruplex structures that affect scanning and translation.
VAULT	Post-transcriptional	Stress granules and P-bodies for RNA storage or decay.
FORGE	Translation	Starting cap-dependent translation through mTOR/eIF4F.
BRAKE	Translation	Slowing global translation during stress through ISR/eIF2α-P.
DECOY	Translation	uORFs that divert scanning ribosomes and gate main ORF translation.
BYPASS	Translation	Non-canonical initiation routes; viral IRESs are robust, while many cellular IRES-like claims need strict controls.
TEMPO	Translation	Decoding kinetics, tRNA/codon effects, ribosome state, and their regulation by growth, initiation load, and stress context. Also covers decoding fidelity: alternate decoding can install non-genomic amino-acid substitutions that yield stable, abundant proteoforms.
INSPECTOR	Translation	RQC/NGD/NSD surveillance of stalled or broken translation.
SWITCH	Post-translational	Phosphorylation/O-GlcNAc switches for protein activity and interactions.
ROUTER	Post-translational	Ubiquitin-chain logic that routes proteins to signaling, proteasome, or autophagy.
TETHER	Post-translational	SUMOylation that tethers proteins into nuclear complexes, repression modules, or repair assemblies.
LICENSE	Post-translational	Neddylation that licenses cullin-RING E3 ubiquitin ligases, regulated by CRL assembly and signaling context.
DESTROY	Post-translational	Protein clearance through two fused outputs: proteasome and selective autophagy.
MATURE	Post-translational	Protein folding, refolding, triage, and ER-stress UPR.
PAR	Post-translational	PARP/PAR signaling at DNA damage and repair condensates.

Term Glossary

These are the main non-gene, non-protein terms used in the figure and glossary.

Term	Meaning
A/B compartments	Large Hi-C chromatin domains; A is generally active/euchromatic, B is generally inactive/heterochromatic.
TAD	Topologically associating domain; a chromatin neighborhood insulated by boundaries such as CTCF/cohesin sites.
Enhancer-promoter loop	A 3D contact that brings a distal enhancer near a target promoter.
Super-enhancer	A dense enhancer cluster with high transcription-factor, Mediator, BRD4, and Pol II occupancy; an operational enhancer annotation, not automatically proof of a condensate.
Condensate / LLPS	Liquid-liquid phase separation; concentration of molecules into a dense phase without a membrane.
DNA methylation	Addition of methyl groups to cytosines, often linked to transcriptional repression at promoters.
Histone mark	A chemical modification on histones, such as acetylation or methylation, read by chromatin proteins.
Chromatin remodeling	ATP-driven repositioning, eviction, or exchange of nucleosomes.
ncRNA	Non-coding RNA; RNA that functions without being translated into protein.
Pol II pausing	Promoter-proximal RNA polymerase II stalling before productive elongation.
CTD phosphorylation	Phosphorylation of the Pol II C-terminal domain, coordinating transcription with RNA processing.
5’ capping	Addition of an m7G cap to nascent RNA, protecting it and enabling export/translation.
Alternative splicing	Regulated exon choice that produces multiple transcript isoforms from one gene.
Alternative polyadenylation	Choice of different cleavage/polyA sites, often changing 3’UTR length.
A-to-I editing	Adenosine-to-inosine RNA editing; inosine is read like guanosine by many machines.
m6A	N6-methyladenosine, a reversible RNA modification interpreted by reader proteins.
RBP	RNA-binding protein.
miRNA-RISC	MicroRNA loaded into the RISC complex to repress or destabilize target RNAs.
ceRNA	Competing endogenous RNA; an RNA that can buffer miRNAs by sharing target sites, when abundance, affinity, and colocalization are sufficient.
NMD	Nonsense-mediated decay; surveillance and degradation of transcripts with premature stop codons.
Deadenylation / decapping	Removal of the polyA tail and 5’ cap, usually committing an mRNA to decay.
RNA G-quadruplex	A guanine-rich RNA structure that can block scanning or alter RNA fate.
Stress granule / P-body	Cytoplasmic RNA-protein condensates involved in RNA storage, repression, or decay.
Cap-dependent translation	Canonical translation initiation through cap recognition and 5’UTR scanning.
ISR / eIF2α-P	Integrated stress response; phosphorylation of eIF2α lowers global initiation but favors selected mRNAs.
uORF	Upstream open reading frame in a 5’UTR that can divert scanning ribosomes.
IRES / ITAF	Internal ribosome entry site and its helper factors. Viral IRESs are strong examples; many cellular IRES claims need strict controls for cryptic promoters, splicing, readthrough, and RNA abundance.
RQC / NGD / NSD	Ribosome quality control, no-go decay, and non-stop decay; surveillance of stalled or abnormal translation.
O-GlcNAc	Reversible sugar modification on Ser/Thr residues that can crosstalk with phosphorylation.
Ubiquitin chain	A polymeric ubiquitin mark whose linkage type, such as K48 or K63, helps determine protein fate.
SUMOylation	Conjugation of SUMO proteins, often changing nuclear interactions or complex assembly.
Neddylation	Conjugation of NEDD8, especially to cullins, activating cullin-RING E3 ligases.
Proteasome	Protease complex that degrades many short-lived or damaged ubiquitinated proteins.
Selective autophagy	Lysosomal clearance of selected cargo such as aggregates, organelles, or ubiquitinated complexes.
UPR	Unfolded protein response; ER-stress response that expands folding capacity or slows translation.
PAR / ADP-ribosylation	Poly-ADP-ribose signaling, often used around DNA damage and condensate formation.

The Seven Layers

The map follows the flow from DNA to RNA to protein:

1. 3D genome: ZONES, FENCES, BRIDGES, and HUBS represent A/B compartments, TADs, enhancer-promoter loops, and super-enhancers that can overlap with transcriptional condensates without being identical to them.
2. Epigenetics: SILENCER, OPENER, WRITER-A, WRITER-R, SHUFFLER, and GUIDES cover DNA methylation, histone marks, chromatin remodeling, and non-coding RNAs that guide chromatin complexes.
3. Transcription: KEYS are transcription factors; SCRIBE is Pol II, promoter-proximal pausing, and the phosphorylation code of its CTD.
4. Co-transcriptional processing: SHIELD, SPLICER, TRIMMER, and RECODER cover capping, alternative splicing, alternative polyadenylation, and A-to-I RNA editing.
5. Post-transcriptional control: STAMP, READERS, DARTS, SPONGE, CENSOR, TIMER, CLIPS, and VAULT cover m6A, RNA-binding proteins, miRNAs, lncRNAs, nonsense-mediated decay, mRNA stability, RNA structures, and cytoplasmic granules.
6. Translation: FORGE, BRAKE, DECOY, BYPASS, TEMPO, and INSPECTOR describe cap-dependent initiation, the integrated stress response, uORFs, non-canonical initiation, decoding kinetics, and ribosome quality control. TEMPO now also folds in decoding fidelity: recent proteogenomics across >1,000 human samples found thousands of non-genomic amino-acid substitutions from alternate ribosomal decoding — not explained by DNA variants or A-to-I editing — producing proteoforms that are stable, abundant, and tissue/cancer-specific (Tsour et al., Nature 2026). Because these proteins partly escape INSPECTOR surveillance and persist into MATURE, this belongs on the speed-vs-fidelity axis of TEMPO rather than in RECODER (which is transcript-level A-to-I editing).
7. Post-translational regulation: SWITCH, ROUTER, TETHER, LICENSE, DESTROY, MATURE, and PAR cover phosphorylation/O-GlcNAc, ubiquitin, SUMOylation, neddylation, proteasome/autophagy clearance, maturation/UPR, and PARP/PAR signaling.

Across the whole diagram, border styles flag recurring meta-principles. LLPS marks liquid-liquid phase separation, and DECAY marks turnover or clearance. They are not extra regulatory layers. They are reused in several places: transcriptional condensates, stress granules and P-bodies, mRNA decay, proteolytic condensates, autophagy, and DNA damage repair assemblies.

The Useful Reduction

The full map contains 37 mechanism boxes, 2 meta-principles, and dozens of interactions. But conceptually, most of gene regulation reduces to three strategies.

1. Control accessibility.
Make a substrate accessible or inaccessible to its molecular machinery. Chromatin opening lets transcription factors bind. TADs constrain which enhancers can contact which promoters. Stress granules temporarily remove mRNAs from translation. miRNAs and lncRNAs tune whether an mRNA is available to the ribosome.

2. Write a reversible mark, then interpret it.
Histone methylation, DNA methylation, m6A, phosphorylation, ubiquitination, SUMOylation: the mark alone is never the full story. The reader and the context determine the output. m6A can promote translation or accelerate decay. A K48 ubiquitin chain points toward the proteasome; K63 often acts in signaling or selective autophagy. Phosphorylation can activate a transcription factor or create a degron.

3. Couple two processes through kinetics.
Some regulation is not a static state but a timing problem. Pol II elongation speed influences exon choice. SETD2 deposits H3K36me3 during elongation, linking transcription to splicing. eIF2α phosphorylation globally slows translation but selectively favors ATF4 through uORF logic. Codon usage changes ribosome speed and can influence co-translational folding.

That is the central idea of the landscape: gene regulation is not just a list of mechanisms. It is a multi-layer control architecture built from recurring design patterns.

Why This Matters For AI Biology

For AI biology, this kind of map is not only educational. It shows why predicting “gene expression” cannot be reduced to reading a promoter sequence.

The output of a gene depends on chromatin state, 3D contacts, Pol II kinetics, splicing, RNA modifications, RNA-binding proteins, translational control, and protein lifetime. A model that wants to predict perturbation response, cell state, or disease mechanism needs to represent at least part of this stack.

The lesson of the Gene Regulation Landscape is simple: gene expression is not a scalar. It is the endpoint of a control system.

Sources To Anchor The Map

• Core & Adelman, 2019, promoter-proximal Pol II pausing: https://pubmed.ncbi.nlm.nih.gov/31123063/
• Naftelberg et al., 2015, transcription/chromatin/splicing coupling: https://pubmed.ncbi.nlm.nih.gov/26034889/
• Wang & He, 2014, dynamic RNA modifications: https://pubmed.ncbi.nlm.nih.gov/25263552/
• Wang et al., 2015, m6A and translation efficiency: https://www.cell.com/cell/fulltext/S0092-8674(15)00562-0
• Shi et al., 2017, YTHDF3 translation/decay: https://pmc.ncbi.nlm.nih.gov/articles/PMC5339834/
• Sabari et al., 2018, coactivator condensation at super-enhancers: https://pmc.ncbi.nlm.nih.gov/articles/PMC6092193/
• Robson et al., 2019, chromatin topology: https://pubmed.ncbi.nlm.nih.gov/31324893/
